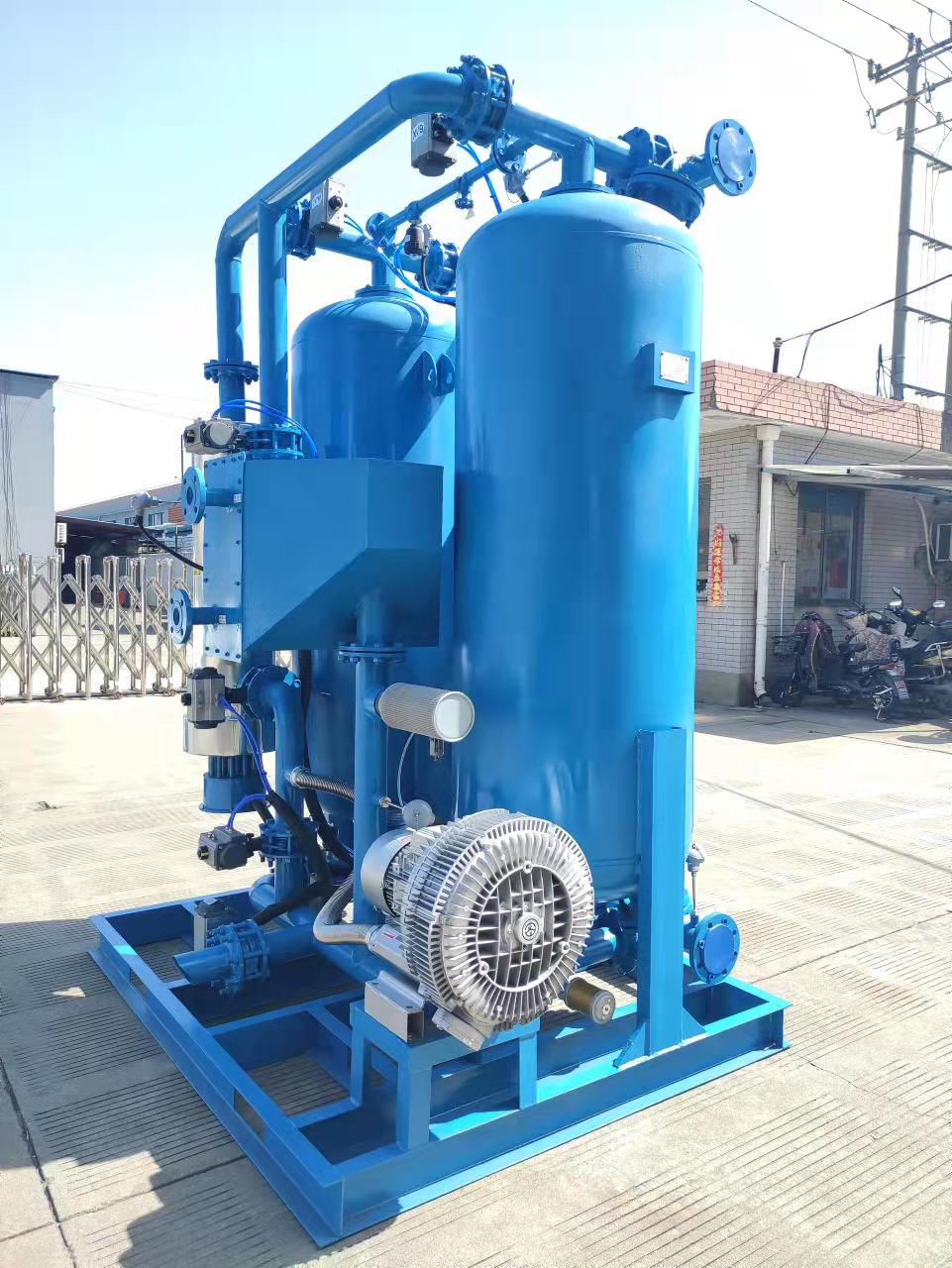

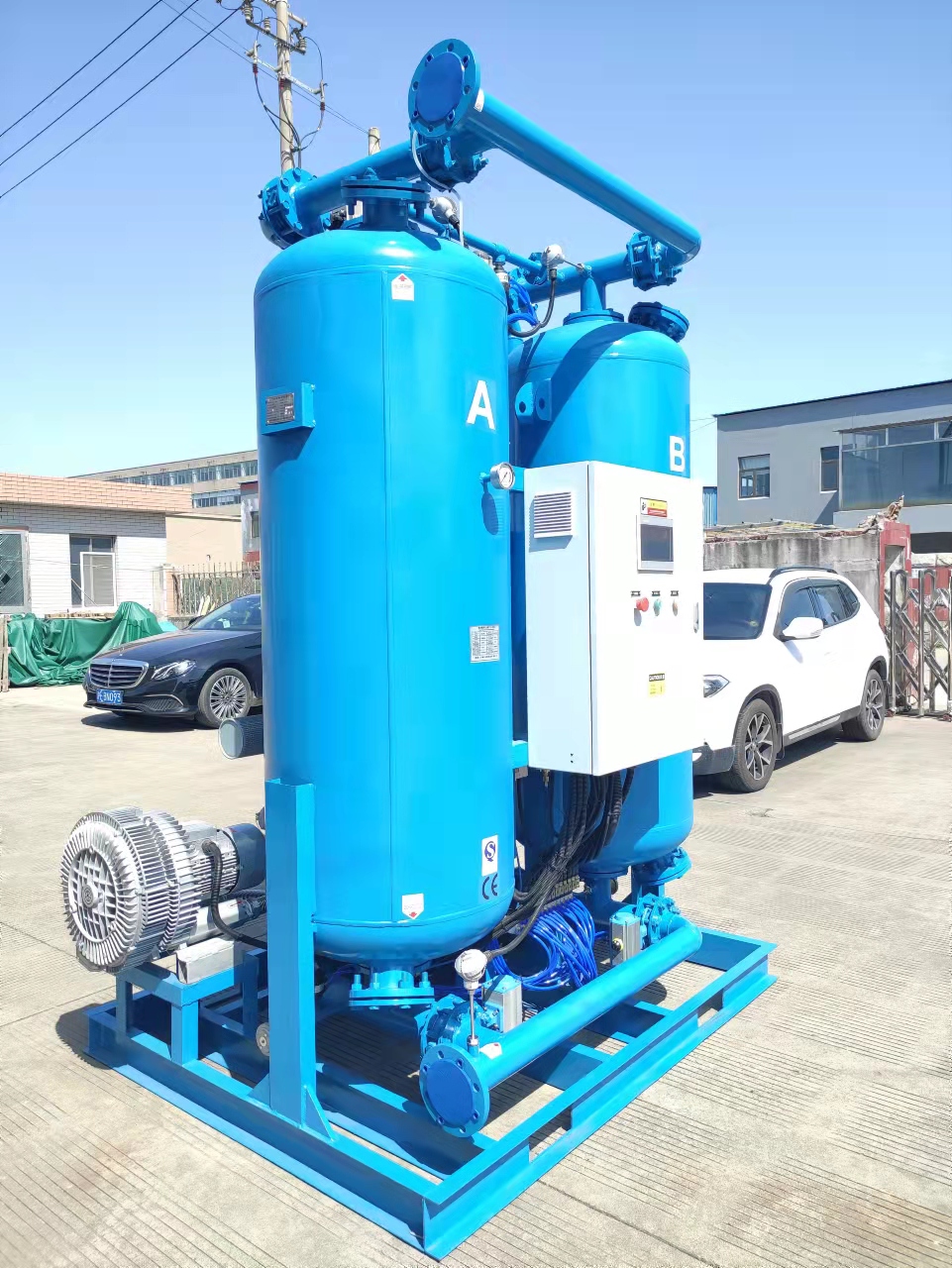

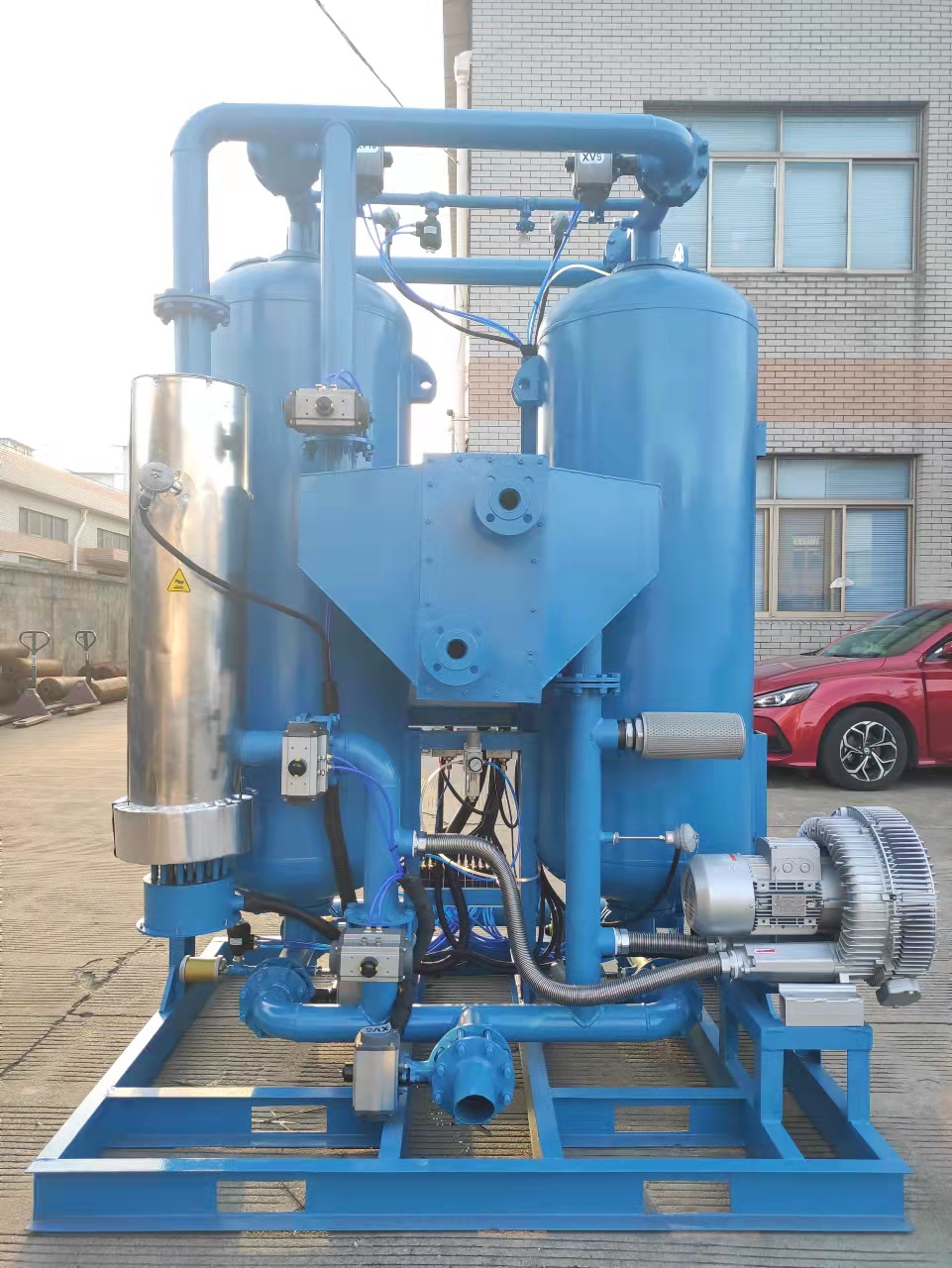

Blower Purge Absorption Air Dryer, air dryer
|
1.Technical Data |
||
|
Model |
HSD-15GLXF |
|
|
Flow rate data |
||
|
Capacity |
m³/min(cfm) |
17（600） |
|
Rated inlet pressure. (gauge pres.) |
MPa |
0.7 |
|
Inlet temperature. |
℃ |
0 ~ 38 |
|
Designed dew point |
℃ |
-40 （-70℃ optional） |
|
Application |
||
|
Medium |
℃ |
Compressed air |
|
Inlet temperature. |
℃ |
0 ~ 38 |
|
Ambient temperature |
℃ |
2 ~ 43 |
|
Working pressure (absolute pres.) |
MPa |
0.7 ~ 1.0 |
|
Inlet oil content |
mg/m3 |
≤0.01 |
|
Designed dew point |
℃ |
-40 （-70℃ optional） |
|
Pressure loss |
Kg/cm2g |
≤0.1 |
|
Average purge air |
% |
0 |
|
Adsorbent |
|
activated alumina, molecular sieve |
|
Regenerative mode |
|
Blower regeneration+resistance heater |
|
Working mode |
|
Continuing alternative working between two towers |
|
Working periods |
|
T=120min/T=240min |
|
Control mode |
|
PLC |
|
Built-in cooler |
|
High-efficiency plate-fin type |
|
Installation mode |
|
Indoor, no-foundations |
|
Air inlet and outlet |
Inch |
DN65 (HG/T20592-2009) |
|
Net weight |
kg |
2250 |
|
Dimension（L×W×H） |
mm |
1700×1366×2540 |
|
Electrical Specification |
||
|
Power supply |
V/Hz |
Single phase 440/60 |
|
Power consumption |
kW |
12.9 |
|
Painting color |
RAL |
Blue (No.5012) |
|
Remark： |
||
|
1. Indoor installation. It's prohibited to install the equipment outdoor. |
||
|
2. Product performance standards: JB/T 10523-2005。 |
||
|
3. Outlet dew point value is determined by the inlet compressed air, its' saturation water and water volume would affect the dew point value. If there's certainly saturation water existing, you should install air fitler(s) before the absorption air dryer |
||
